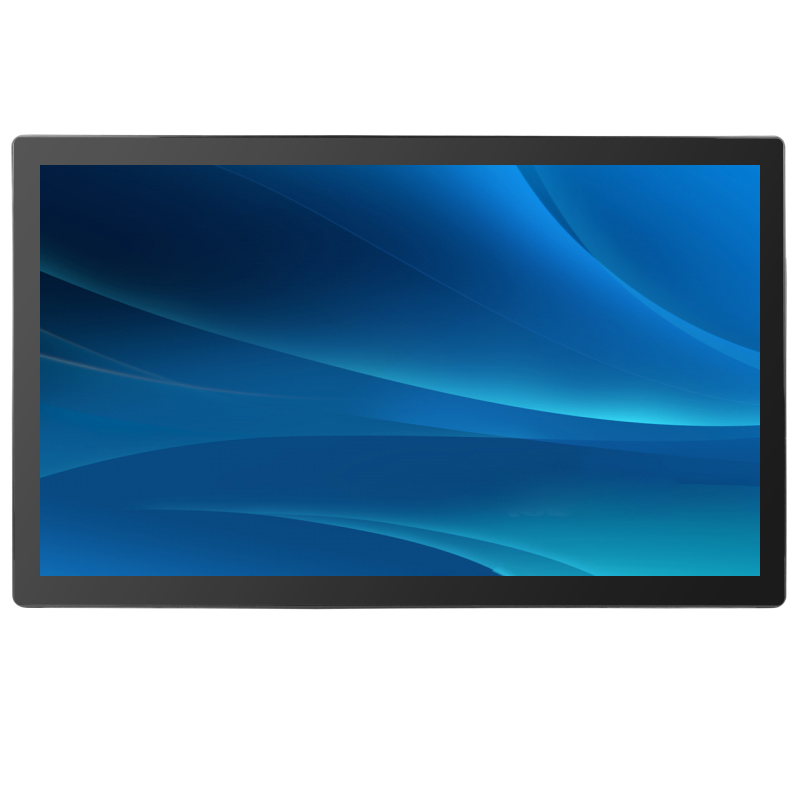

23.8 Inch Open Frame Touch Monitor
Full HD 23.8 Inch Open Frame Touch Monitor
The LFTouch 23.8 inch open frame touch monitor is designed for kiosk integration, industrial control systems, self-service terminals, and embedded commercial display applications. It features a Full HD 1920 × 1080 display, PCAP touch technology, wide viewing angles, and a slim open frame structure for easy installation into customized equipment.
• 23.8 inch Full HD TFT-LCD display with 1920 × 1080 resolution
• Projected capacitive touch screen with USB touch interface
• Wide viewing angle for clear display performance
• VGA and HDMI video input options
• 7H touch glass hardness for better durability
• Supports Windows, Linux, and Android systems
• VESA 75 × 75 mm and 100 × 100 mm mounting support
• Suitable for horizontal or vertical installation
Applications
This 23.8 inch open frame touch monitor can be widely used in self-service kiosks, industrial control panels, ticketing terminals, information displays, vending machines, smart retail equipment, medical terminals, and customized embedded touch display systems.
Specifications
Display
Display Type: 23.8" TFT-LCD
Aspect Ratio: 16:9
Active Area: 528 × 297.5 mm
Suggested Resolution: 1920 × 1080 @ 60Hz
Support Colors: 16.7M
Brightness: 250 cd/m² LCD panel / 215 cd/m² with touch
Response Time: 14 ms
Viewing Angle: 89°/89°/89°/89° left/right/up/down
Contrast Ratio: 1000:1
Touch
Touch Type: Projected Capacitive Touch
Touch Input: USB
Touch Response Time: ≤10 ms
Surface Hardness: 7H
Light Transmittance: ≥87%
Glass Thickness: 3 mm
Touch Life: ≥50,000,000 touches
Interface
Video Input: VGA / HDMI
Touch Interface: USB
Power Input: DC 12V ±5%
Power
Power Supply Type: External Adapter
Input Voltage: 100–240V AC, 50–60Hz
Standby Power: 2W
Operating Power: ≤27W
Mechanical
Monitor Dimensions: 573.3 × 345.1 × 43 mm
Mounting: VESA 75 × 75 mm / 100 × 100 mm
Installation: Horizontal or vertical mounting supported
Environment
Operating Temperature: 0°C to 50°C
Operating Humidity: 20% to 80%
Storage Temperature: -20°C to 60°C
Storage Humidity: 10% to 90%
MTBF: 30,000 hours
LED Backlight Life: 30,000 hours
System Compatibility
Supported Systems: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android
OSD Control Buttons: AUTO, +, POWER, -,
MENU Functions: Brightness, Contrast, Auto-adjust, Phase, Clock, H/V Location, Language, Reset
Certifications CCC, ETL, FCC, CE, CB, RoHS
Warranty
Standard Warranty: 1 Year

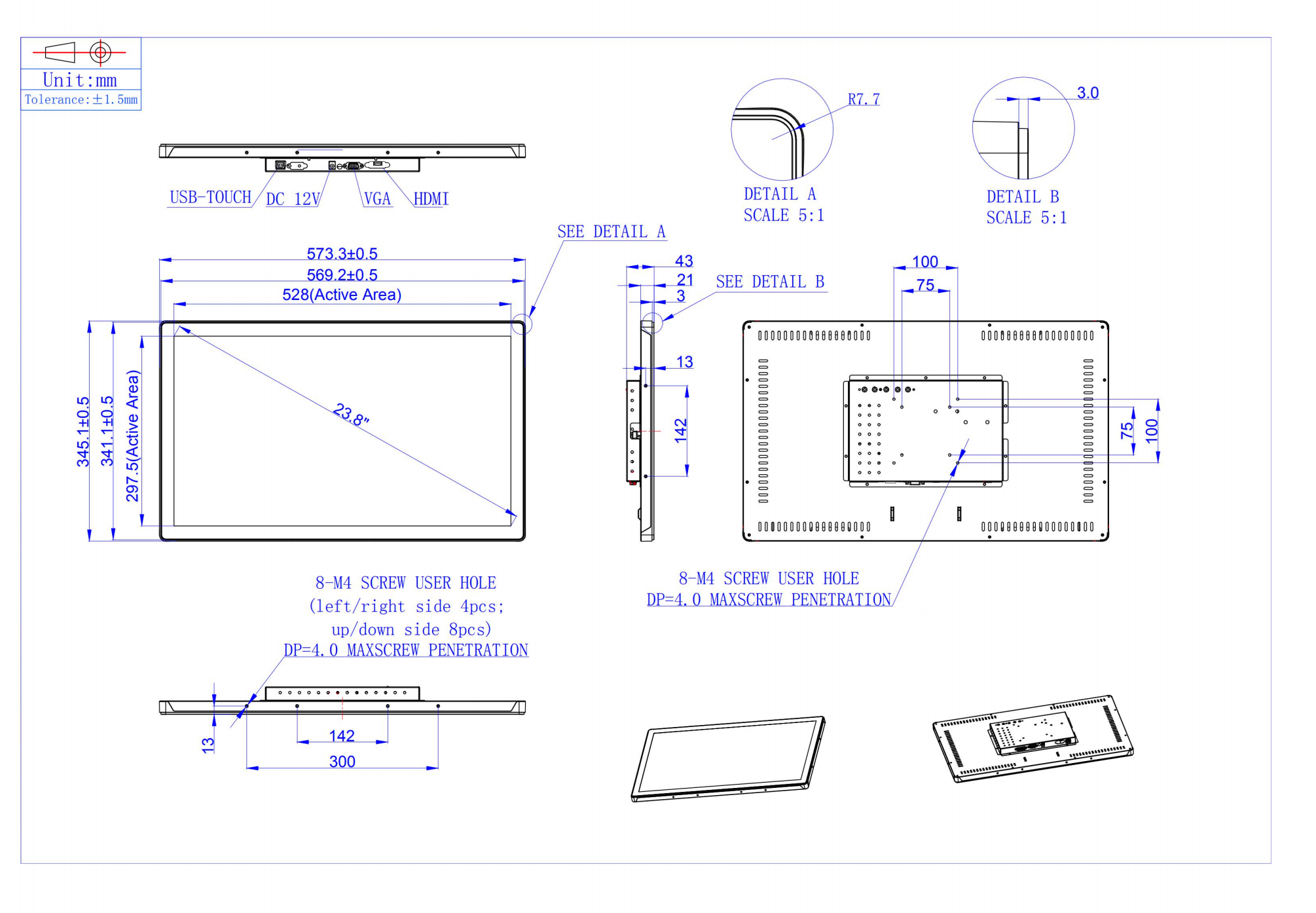

Mechanical Drawing
The mechanical drawing shows the 23.8 inch open frame touch monitor with an overall dimension of 573.3 × 345.1 × 43 mm and an active display area of 528 × 297.5 mm. It supports VESA 75 × 75 mm and 100 × 100 mm mounting, with M4 screw holes for flexible embedded installation. The slim open frame structure makes it suitable for kiosk, cabinet, and industrial equipment integration.
Request a Quote
Looking for a 23.8 inch open frame touch monitor for your project? Contact LFTouch to get product details, customization options, and a quotation based on your application requirements.
